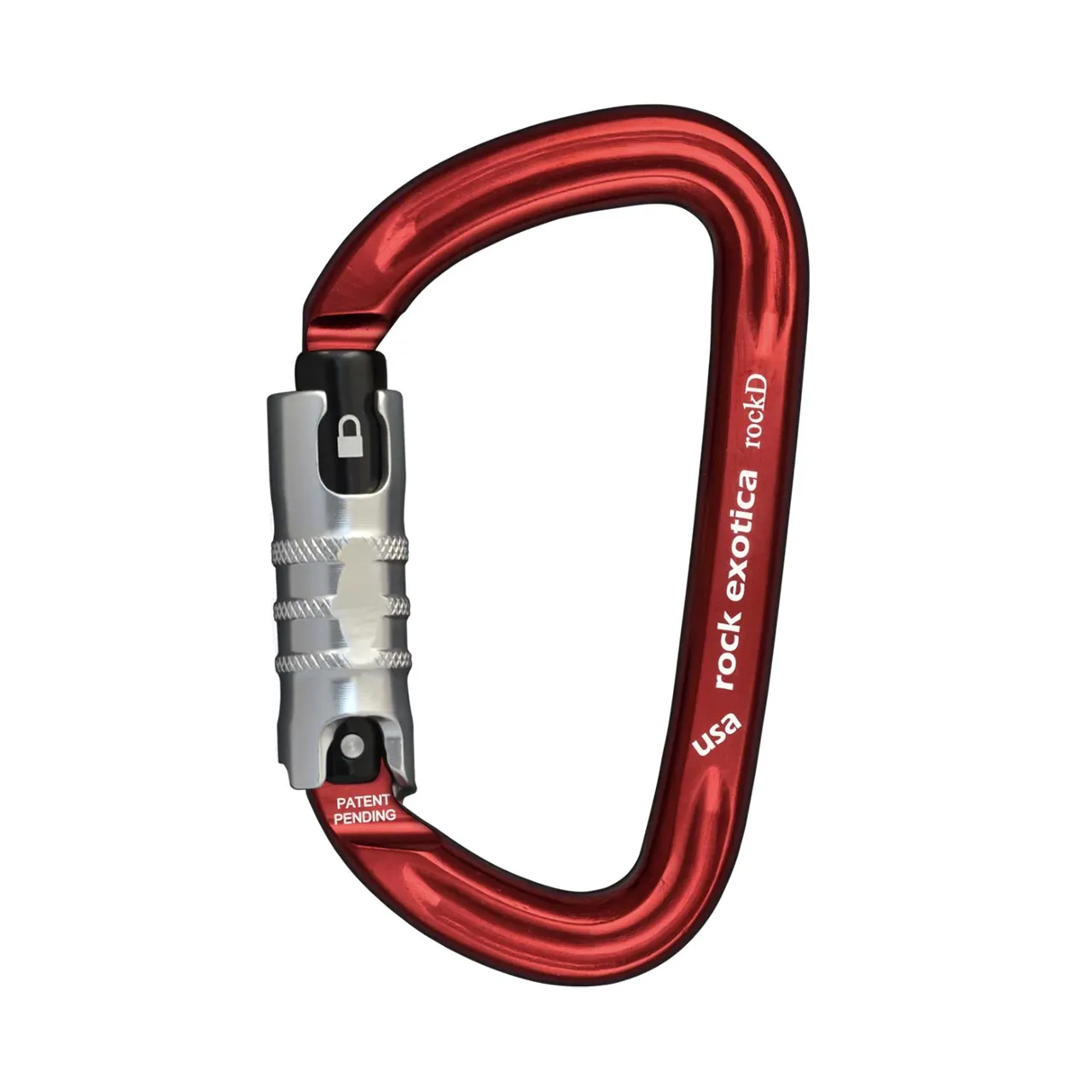

The rockD Up-Lock carabiner utilizes a push-up and twist gate mechanism, allowing technicians to match gate styles to their existing equipment and gear configurations. The rockD is the carabiner of choice when seeking the highest strength in a standard-sized aluminum frame. The rockD carabiner serves the broadest range of specialized uses. The rockD in non-lanyard versions, features a flattened, i-beam profile at the bottom and top bends, giving the carabiner a sleek profile, while providing low weight and high strength characteristics.

• Narrow asymmetric "D" shape optimizes MBS
• High strength-to-weight ratio in standard size carabiner
• Snag-resistant keylock nose design
• Large and ergonomic angled gate opening
• Machined frame ensures tight tolerances and smooth operation

Gate Mechanism

The 3-stage Up-Lock carabiner features a PUSH-UP and twist action.

We identified several surfaces where ropes and lanyards can be held up by the edges of the gate and sleeve, which can lead to dangerous cross-loading. The upLock gate sleeve is designed with beveled edges to minimize this risk and provide a smoother interior for interaction with the materials connected to the carabiner.

• Push-up and twist action
• Beveled edges provide smooth operating surfaces
• Large and ergonomic angled gate opening

Specifications

• Gate: Auto-Lock
• Ref #: C2 A
• MBS-Major: 29 kN
• MBS-Minor: 11 kN
• MBS-Open: 9 kN

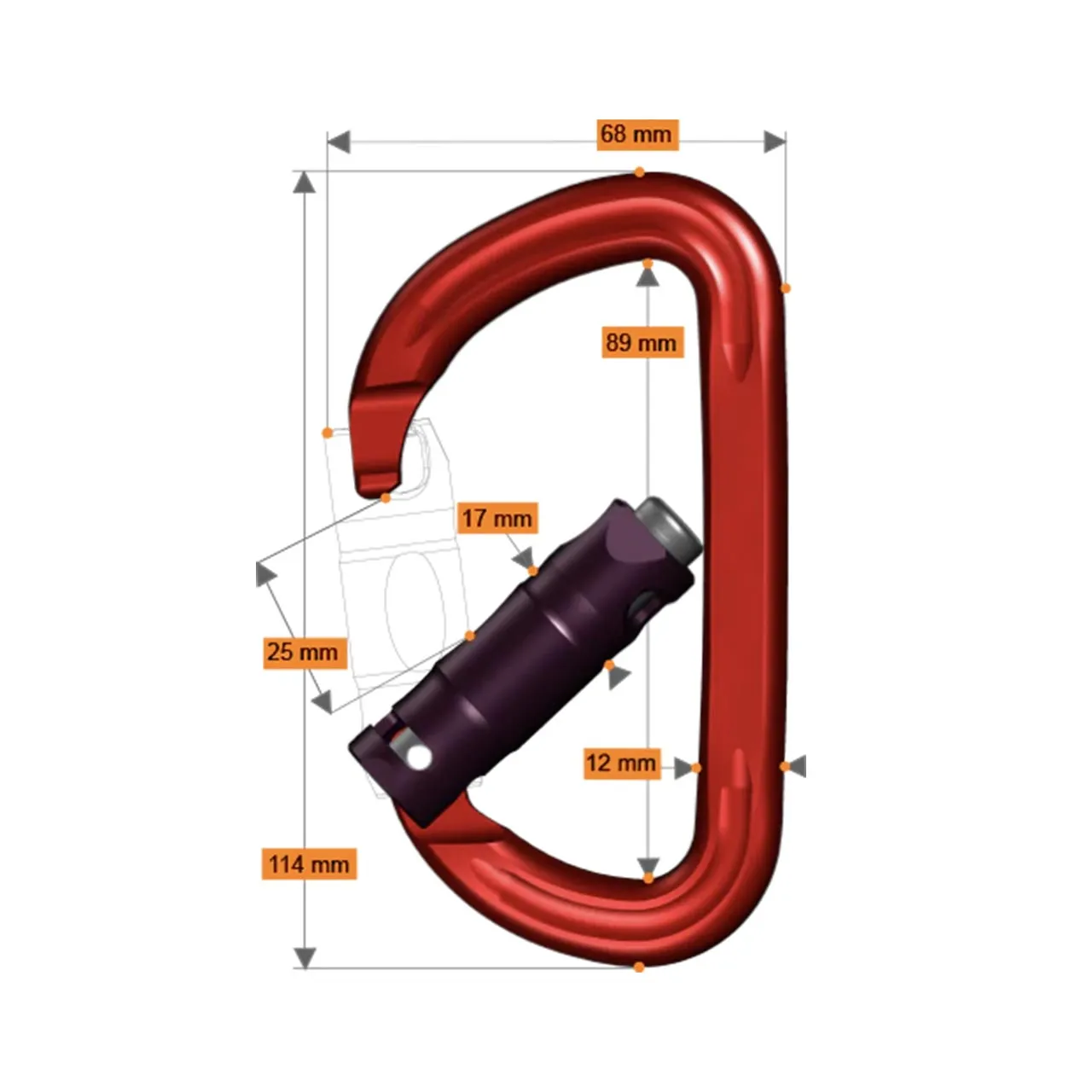

• Gate Opening: .95" (24 mm)
• Weight: 2.85 oz (80 gm)
• Height: 4.5" (114 mm)
• Width: 2.8" (71 mm)
• Certification: CE
