Pulley-carabiner that facilitates installation of the rope when pulley is connected to the anchor

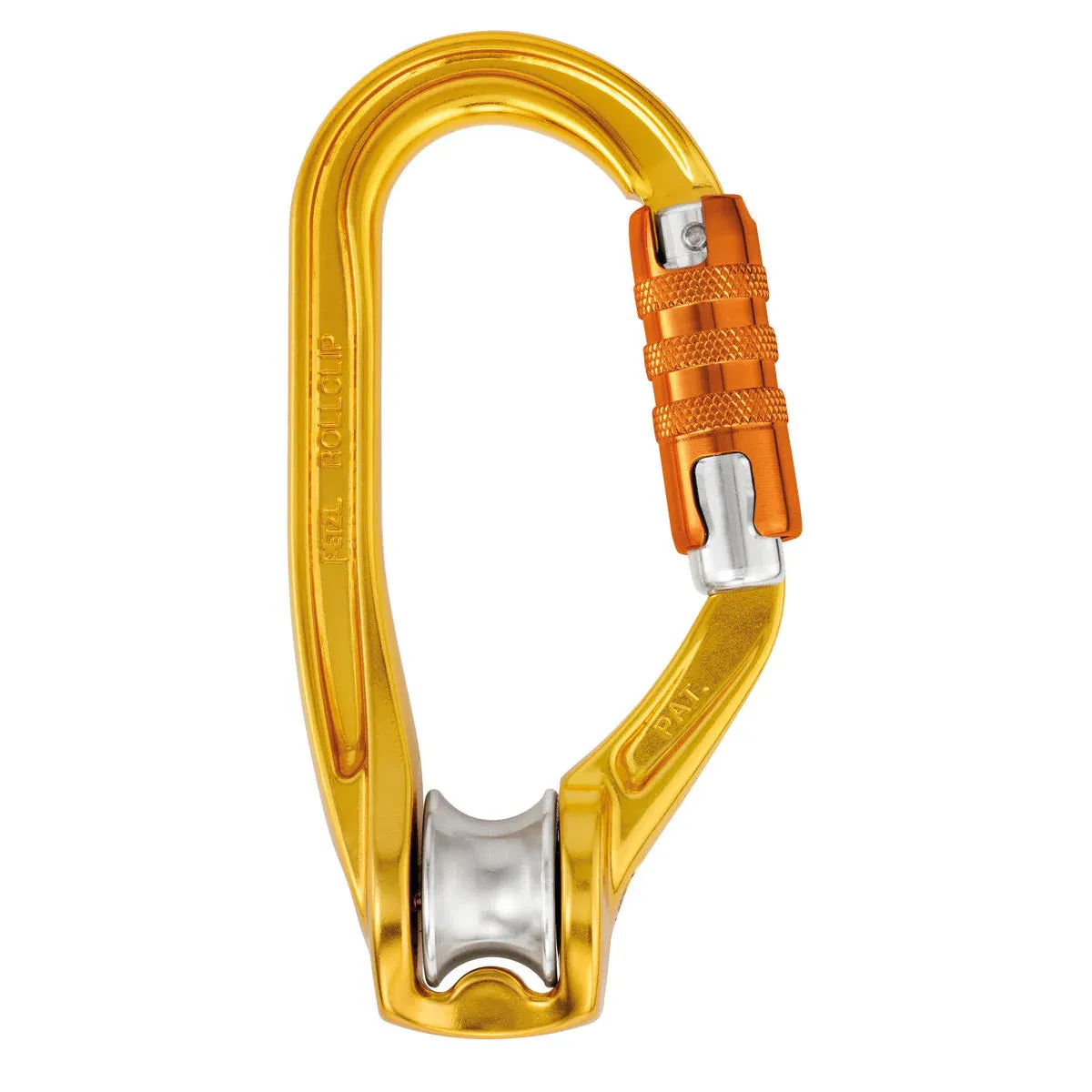

ROLLCLIP A is a pulley-carabiner with a gate opening on the pulley side that facilitates installation of the rope when the pulley is fixed to the anchor. It is available with an automatic TRIACT-LOCK locking system, or without a locking system. ROLLCLIP A may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis, to limit the risk of it flipping and to keep it integrated with the device.
Description
- Easier handling:
- sheave mounted on sealed ball bearings for excellent efficiency

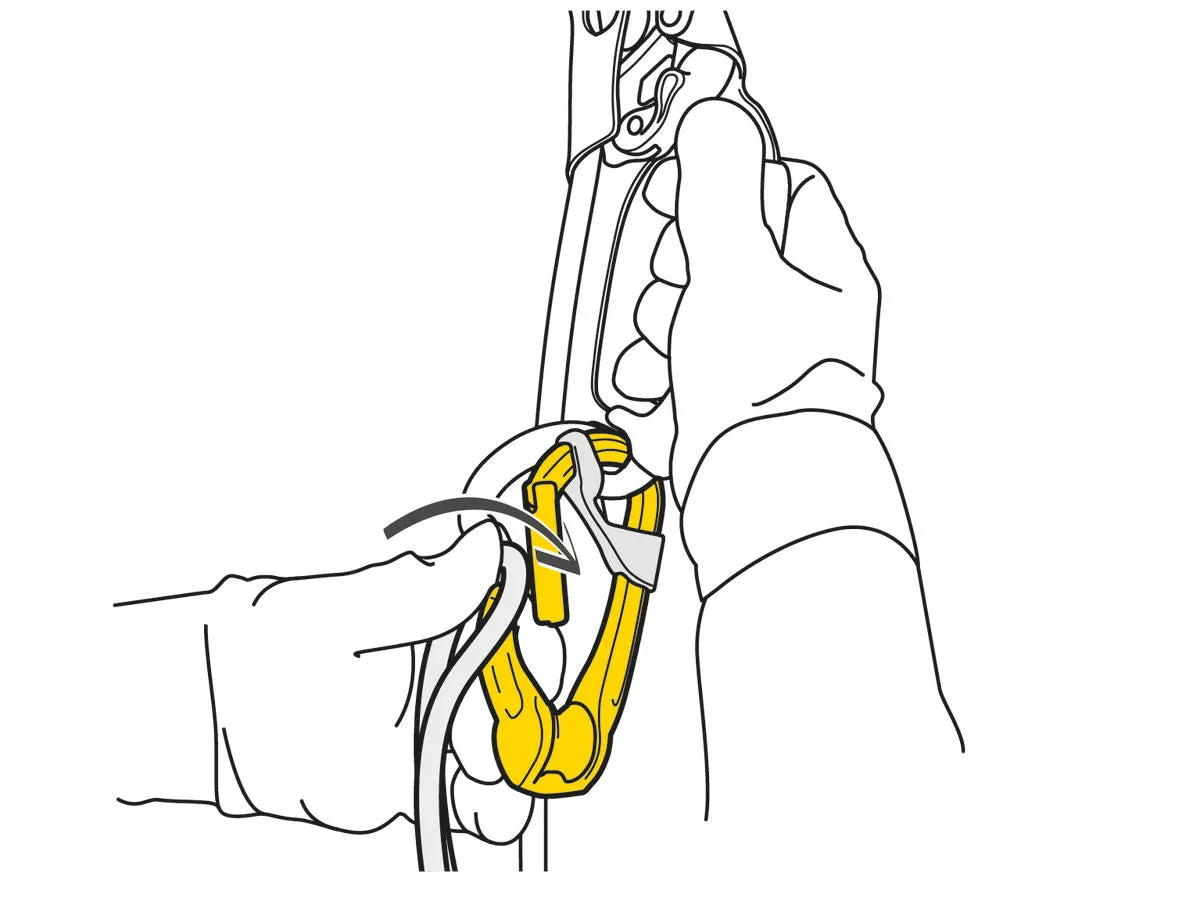

- gate opening on the pulley side facilitates installation of the rope when the pulley is fixed to the anchor

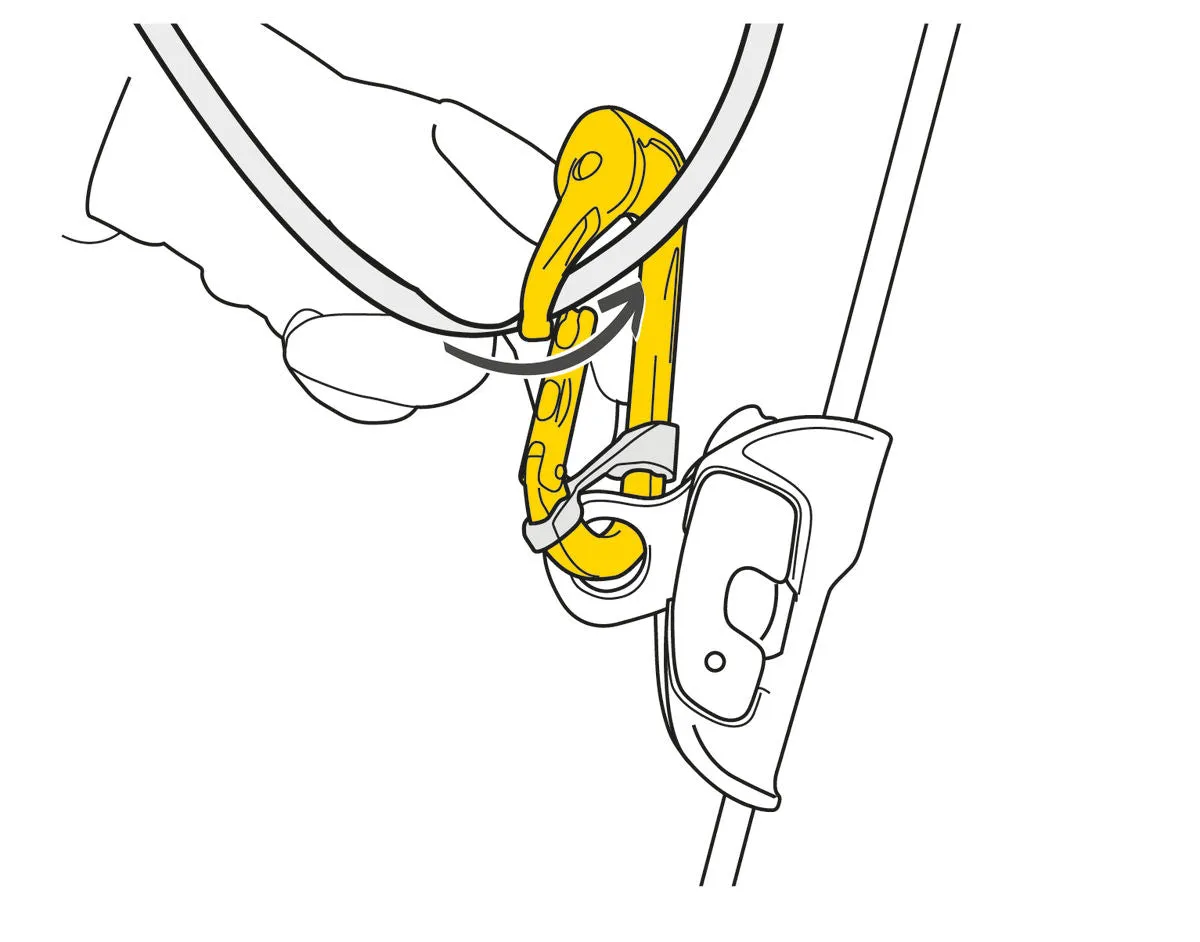

- may be used with a CAPTIV positioning bar to favor loading of the carabiner along the major axis and to limit the risk of it flipping
- Keylock system prevents any accidental snagging of the carabiner when putting the pulley in place - H cross-section of carabiner:
- ensures an improved strength-to-weight ratio
- protects markings from abrasion - Available in versions with or without TRIACT-LOCK locking system
Specifications
- Material(s): aluminum
- Min. rope diameter: 7 mm
- Max. rope diameter: 13 mm
- Sheave diameter: 18 mm
- Maximum working load: 2 x 2 = 4 kN
- Efficiency: 85 %
- Major axis strength: 20 kN
- Minor axis strength: 8 kN
- Open gate strength: 7 kN
